Should you place three pie charts side by side, or should you avoid pie charts altogether? Publicly available visualization style guides offer contradictory answers to such questions. Despite their growing influence on how people encounter data, these guides are seldom studied as a collective phenomenon. Addressing this gap, this paper presents the first systematic analysis of 53 publicly accessible visualization style guides from diverse domains, including journalism, government, non-profit, corporate, and academic sectors. We build a standardized corpus, conduct a multi-method analysis that reveals both consensus and contradiction, and develop a companion Guidelines Explorer to support transparency and future use. This work sheds light on organizational visualization design norms and provides a foundation for future work that helps bridge the gap between academic and industry practices. In doing so, we help reframe style guides as sociotechnical artifacts that encode values as much as design rules.

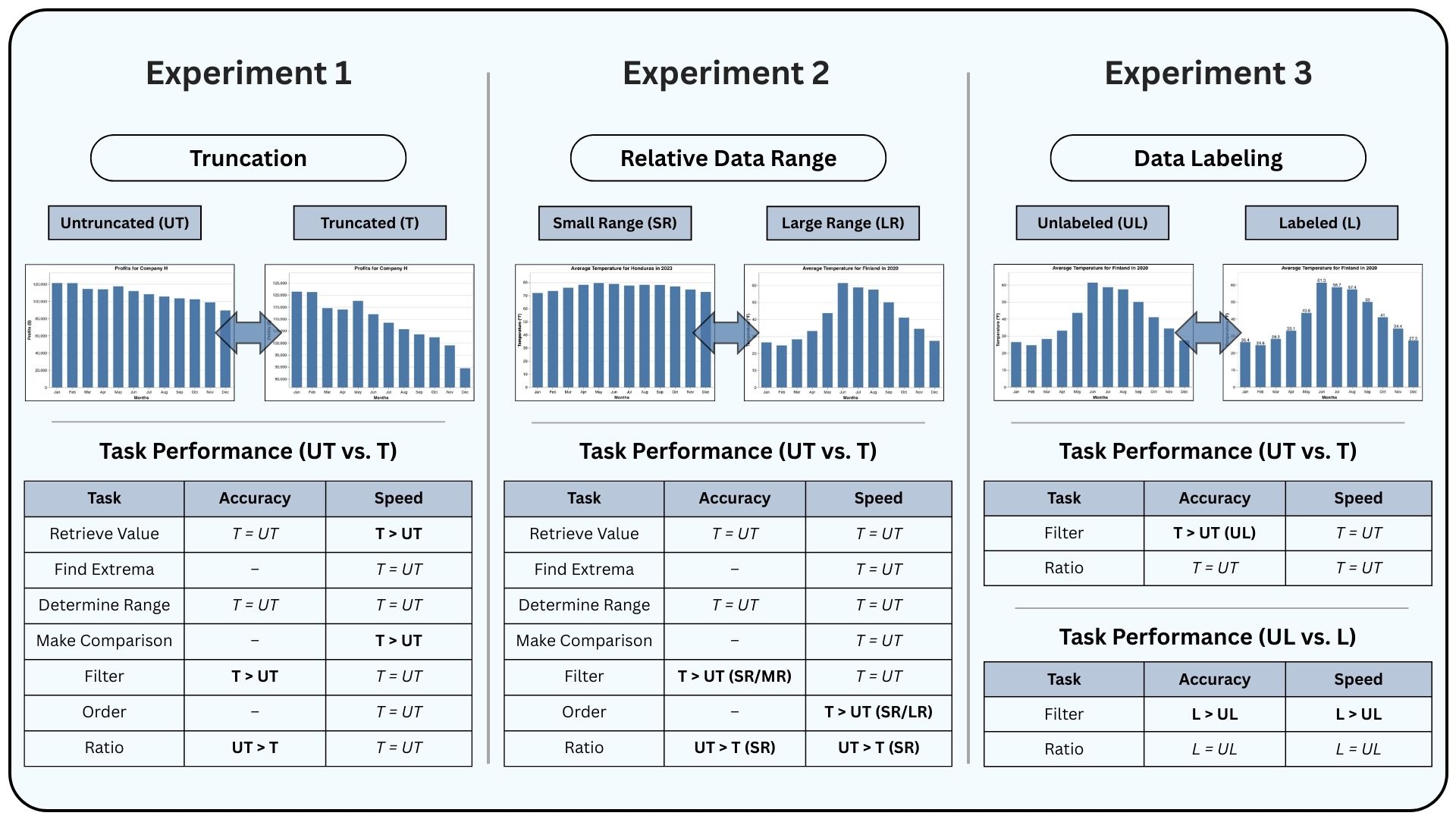

Axis truncation in bar charts is widely criticized as misleading, often based on ratio judgments or subjective ratings (i.e., Likert scale comparisons). This perspective, however, overly relies on these tasks and lacks nuance. We conducted three experiments to examine the effects of truncation across seven bar chart tasks. Our results show that truncation increases error for ratio calculations but improves accuracy or speed for tasks such as filtering and value retrieval. We further find that the magnitude of these effects depends on the degree of truncation and that direct data labeling substantially mitigates the negative effects of truncation in our experimental setting. These findings add nuance to bar chart truncation and invite discussion around the inherent "deceptiveness" of design elements.

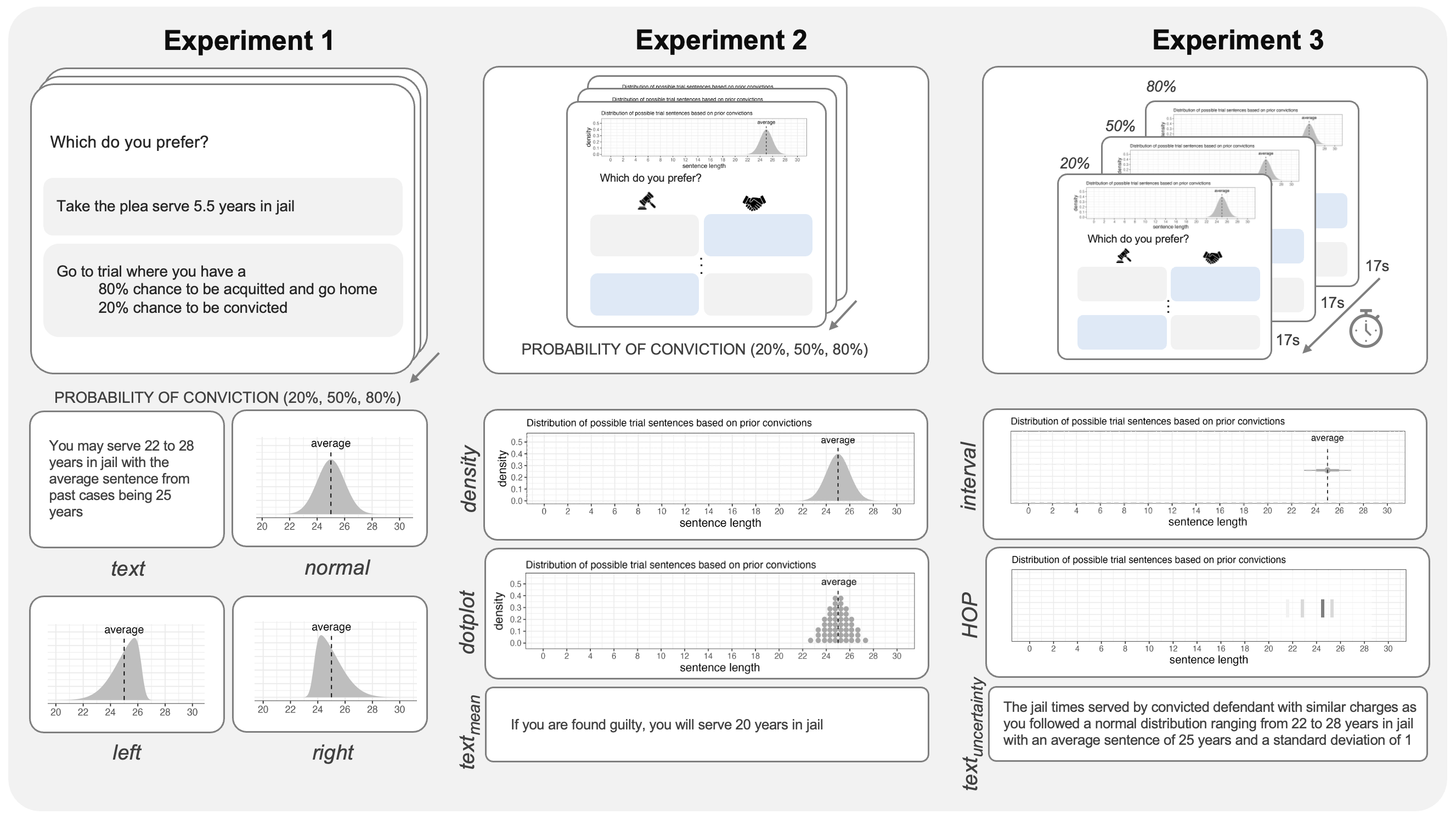

Plea bargains are commonly used in the criminal justice system, where they can offer potential benefits to both the prosecution and the defendant. However, research has shown that defendants often engage in poor decision-making, such as accepting the plea even when the trial sentence is likely to be less severe. While previous studies have shown some evidence that uncertainty visualizations can improve decision-making, there is a lack of research on their effectiveness in domain-specific tasks like plea bargain decision-making. In this work, we conduct a series of experiments to explore whether the presence and format of uncertainty impact plea bargain decisions, taking into account time pressure and individual differences. Our findings reveal that these factors can have a significant impact on plea bargain decisions. We also show evidence that communicating uncertainty in the form of text can elicit more optimal decisions under time-pressure conditions.

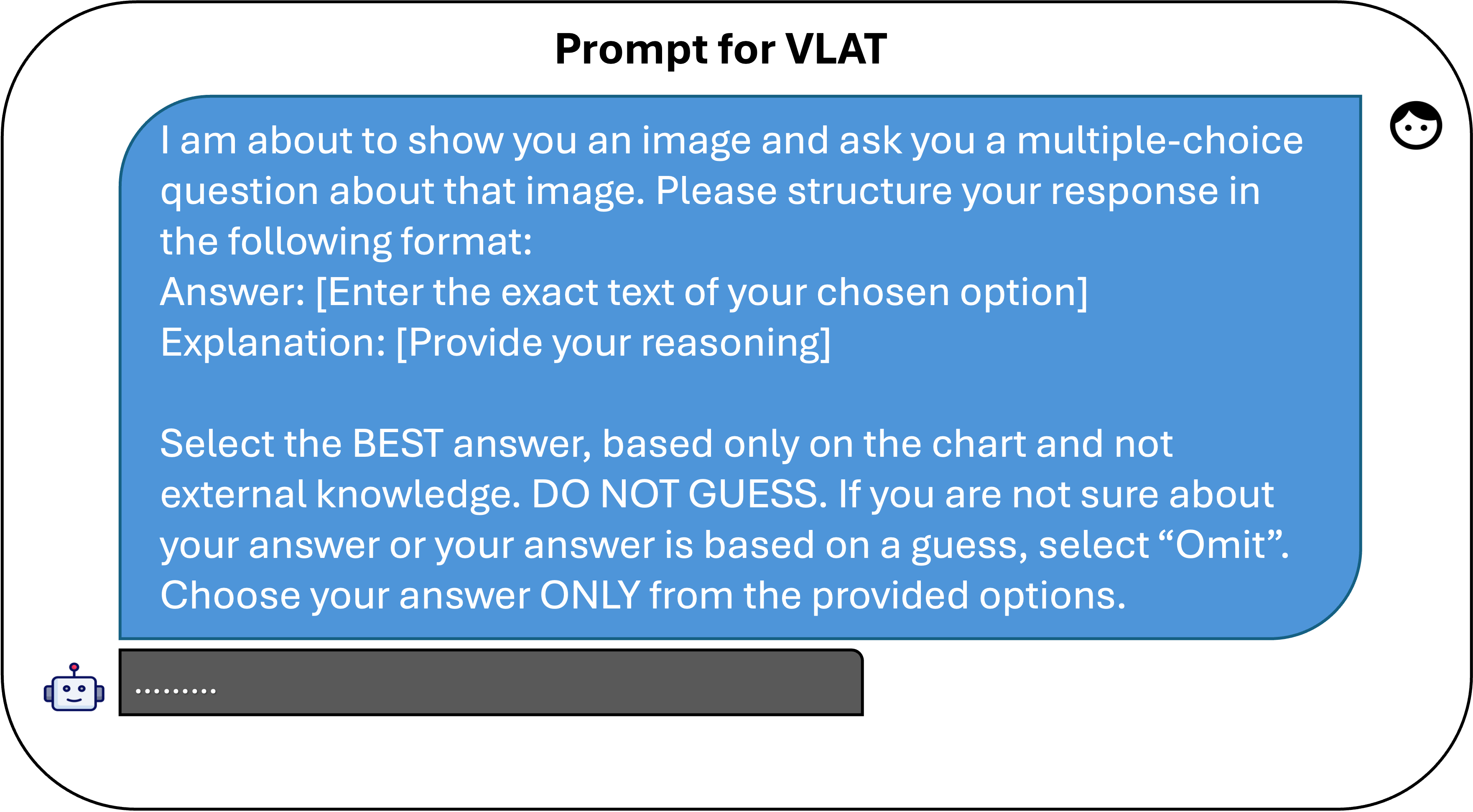

The increasing integration of Visual Language Models (VLMs) into visualization systems demands a comprehensive understanding of their visual interpretation capabilities and constraints. While existing research has examined individual models, systematic comparisons of VLMs’ visualization literacy remain unexplored. We bridge this gap through a rigorous, first-of-its-kind evaluation of four leading VLMs (GPT-4, Claude, Gemini, and Llama) using standardized assessments: the Visualization Literacy Assessment Test (VLAT) and Critical Thinking Assessment for Literacy in Visualizations (CALVI). Our methodology uniquely combines randomized trials with structured prompting techniques to control for order effects and response variability - a critical consideration overlooked in many VLM evaluations. Our analysis reveals that while specific models demonstrate competence in basic chart interpretation (Claude achieving 67.9% accuracy on VLAT), all models exhibit substantial difficulties in identifying misleading visualization elements (maximum 30.0% accuracy on CALVI). We uncover distinct performance patterns: strong capabilities in interpreting conventional charts like line charts (76-96% accuracy) and detecting hierarchical structures (80-100% accuracy), but consistent difficulties with data-dense visualizations involving multiple encodings (bubble charts: 18.6-61.4%) and anomaly detection (25-30% accuracy). Significantly, we observe distinct uncertainty management behavior across models, with Gemini displaying heightened caution (22.5% question omission) compared to others (7-8%). These findings provide crucial insights for the visualization community by establishing reliable VLM evaluation benchmarks, identifying areas where current models fall short, and highlighting the need for targeted improvements in VLM architectures for visualization tasks. To promote reproducibility, encourage further research, and facilitate benchmarking of future VLMs, our complete evaluation framework, including code, prompts, and analysis scripts, is available at https://github.com/washuvis/VisLit-VLM-Eval

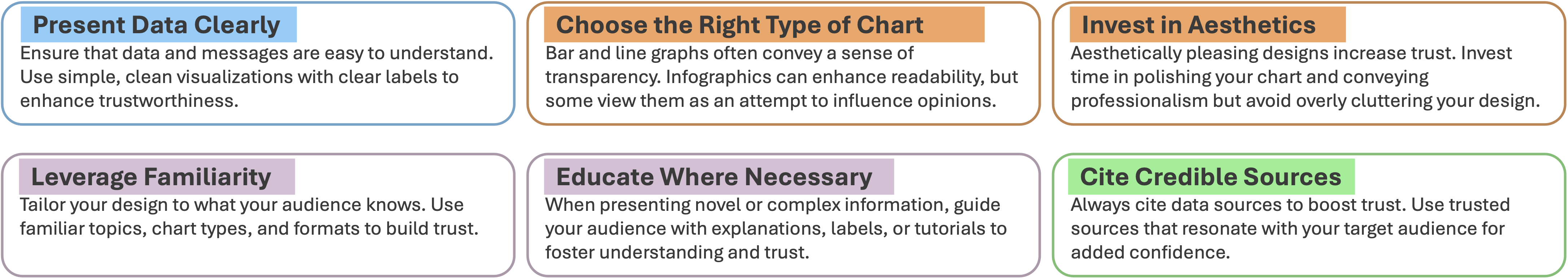

Despite the importance of viewers’ trust in data visualization, there is a lack of research on the viewers’ own perspective on their trust. In addition, much of the research on trust remains relatively theoretical and inaccessible for designers. This work aims to address this gap by conducting a qualitative study to explore how viewers perceive different data visualizations and how their perceptions impact their trust. Three dominant themes emerged from the data. First, users appeared to be consistent, listing similar rationale for their trust across different stimuli. Second, there were diverse opinions about what factors were most important to trust perception and about why the factors matter. Third, despite this disagreement, there were important trends to the factors that users reported as impactful. Finally, we leverage these themes to give specific and actionable guidelines for visualization designers to make more trustworthy visualizations.

The increasing integration of artificial intelligence (AI) in visual analytics (VA) tools raises vital questions about the behavior of users, their trust, and the potential of induced biases when provided with guidance during data exploration. We present an experiment where participants engaged in a visual data exploration task while receiving intelligent suggestions supplemented with four different transparency levels. We also modulated the difficulty of the task (easy or hard) to simulate a more tedious scenario for the analyst. Our results indicate that participants were more inclined to accept suggestions when completing a more difficult task despite the AI’s lower suggestion accuracy. Moreover, the levels of transparency tested in this study did not significantly affect suggestion usage or subjective trust ratings of the participants. Additionally, we observed that participants who utilized suggestions throughout the task explored a greater quantity and diversity of data points. We discuss these findings and the implications of this research for improving the design and effectiveness of AI-guided VA tools.

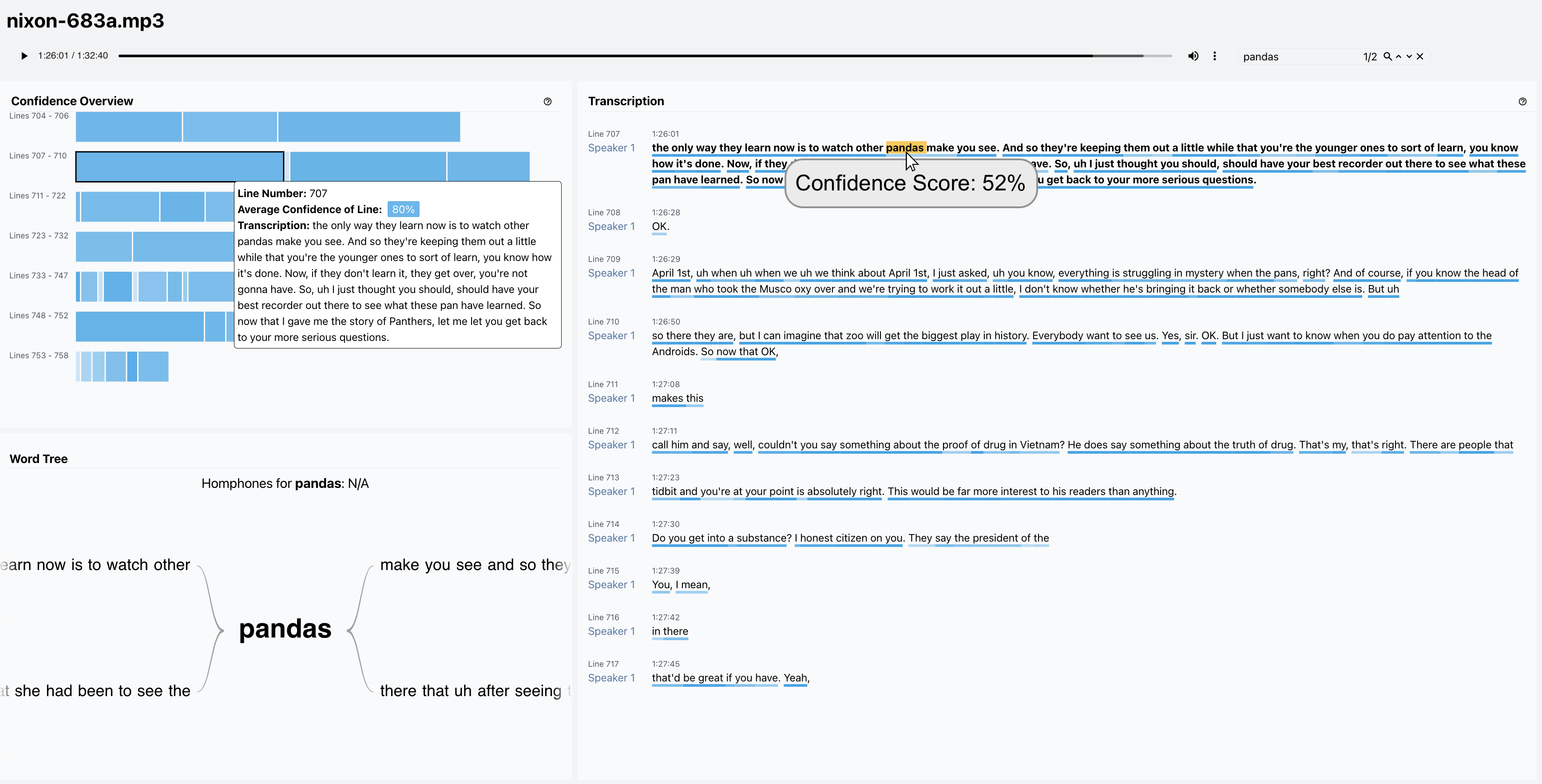

Confidence scores of automatic speech recognition (ASR) outputs are often inadequately communicated, preventing its seamless integration into analytical workflows. In this paper, we introduce ConFides, a visual analytic system developed in collaboration with intelligence analysts to address this issue. ConFides aims to aid exploration and post-AI-transcription editing by visually representing the confidence associated with the transcription. We demonstrate how our tool can assist intelligence analysts who use ASR outputs in their analytical and exploratory tasks and how it can help mitigate misinterpretation of crucial information. We also discuss opportunities for improving textual data cleaning and model transparency for human-machine collaboration.

Researchers have derived many theoretical models for specifying users’ insights as they interact with a visualization system. These representations are essential for understanding the insight discovery process, such as when inferring user interaction patterns that lead to insight or assessing the rigor of reported insights. However, theoretical models can be difficult to apply to existing tools and user studies, often due to discrepancies in how insight and its constituent parts are defined. This paper calls attention to the consistent structures that recur across the visualization literature and describes how they connect multiple theoretical representations of insight. We synthesize a unified formalism for insights using these structures, enabling a wider audience of researchers and developers to adopt the corresponding models. Through a series of theoretical case studies, we use our formalism to compare and contrast existing theories, revealing interesting research challenges in reasoning about a user’s domain knowledge and leveraging synergistic approaches in data mining and data management research.

The visualization community regards visualization literacy as a necessary skill. Yet, despite the recent increase in research into visualization literacy by the education and visualization communities, we lack practical and time-effective instruments for the widespread measurements of people’s comprehension and interpretation of visual designs. We present Mini-VLAT, a brief but practical visualization literacy test. The Mini-VLAT is a 12-item short form of the 53-item Visualization Literacy Assessment Test (VLAT). The Mini-VLAT is reliable (coefficient omega = 0.72) and strongly correlates with the VLAT. Five visualization experts validated the Mini-VLAT items, yielding an average content validity ratio (CVR) of 0.6. We further validate Mini-VLAT by demonstrating a strong positive correlation between study participants’ Mini-VLAT scores and their aptitude for learning an unfamiliar visualization using a Parallel Coordinate Plot test. Overall, the Mini-VLAT items showed a similar pattern of validity and reliability as the 53-item VLAT. The results show that Mini-VLAT is a psychometrically sound and practical short measure of visualization literacy.

The visual analytics community has long aimed to understand users better and assist them in their analytic endeavors. As a result, numerous conceptual models of visual analytics aim to formalize common workflows, techniques, and goals leveraged by analysts. While many of the existing approaches are rich in detail, they each are specific to a particular aspect of the visual analytic process. Furthermore, with an ever-expanding array of novel artificial intelligence techniques and advances in visual analytic settings, existing conceptual models may not provide enough expressivity to bridge the two fields. In this work, we propose an agent-based conceptual model for the visual analytic process by drawing parallels from the artificial intelligence literature. We present three examples from the visual analytics literature as case studies and examine them in detail using our framework. Our simple yet robust framework unifies the visual analytic pipeline to enable researchers and practitioners to reason about scenarios that are becoming increasingly prominent in the field, namely mixed-initiative, guided, and collaborative analysis. Furthermore, it will allow us to characterize analysts, visual analytic settings, and guidance from the lenses of human agents, environments, and artificial agents, respectively.
